AKW · Wet-room formers, traps & wastes
DW90 Low Depth Dry Waste with TF Vinyl Floor Adaptor
Product code: 25419-UK
Dry waste supplied with the Tuff Form vinyl-floor adaptor and waste-pipe connector kit. The non-return valve helps prevent odour backflow when showers are used infrequently.
Request a supply-only quotation from PW Flooring & Maintenance Services. Tell us the quantity and delivery postcode; we will confirm the exact product choice, availability and delivery charge before ordering.
Select this product for a quote →All quotes subject to 20% VAT. UK delivery is subject to restrictions.
Features
- Tuff Form and Tuff Form8 wet-room formers. Not listed as compatible with ShowerDec.
What is included

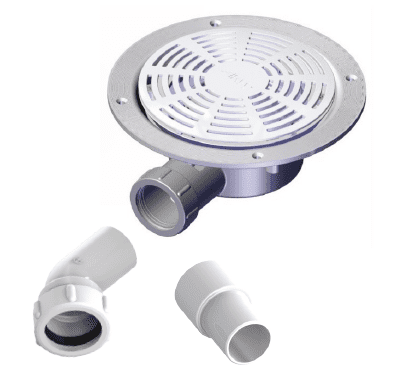

DW90 dry waste, Tuff Form vinyl-floor adaptor and waste-pipe connector kit.
Technical specifications
| Manufacturer | AKW |
|---|---|
| Product code | 25419-UK |
| Waste type | Dry / valve gravity waste |
| Depth below tray | 53 mm |
| Overall depth | 66 mm |
| Waste fitting diameter | 90 mm |
| Flow rate | 27 litres/min with 15 mm head and 1 m pipe |
| Floor adaptor | Tuff Form vinyl adaptor included |
| Pipe connection | Push-fit or solvent-weld using included pipe adaptor kit |
| Floor finish | Vinyl sheet flooring |
Manufacturer documents
AKW 2026 waste catalogue and compatibility guide →
Product specification: printed page 103.
